Product Description

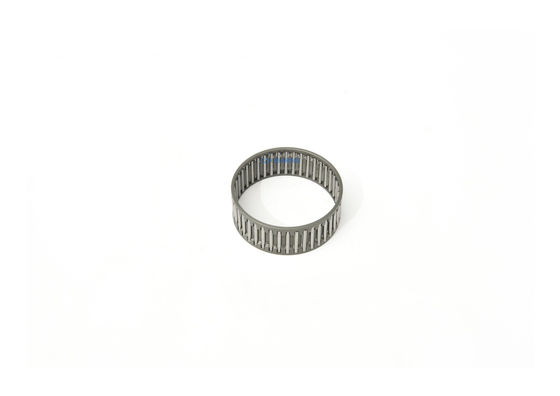

K Type Radial Needle Roller And Cae Assemblies



INCH SERIES

Radial needle roller and cage assemblies for connecting rod applications have two bearing positions: the crank pin or big end, and the wrist pin or small end.

In the crank pin position there may be severe operating conditions due to centrifugal forces, internal forces, accelerations and high rotational speeds, requiring the use of special radial needle roller and cage assemblies.

Similarly, in the wrist pin position the reciprocating inertia loads and high oscillating speeds dictate the use of special cage designs.



Shaft Diameter (mm) Bearing Designation   Boundary Dimensions Basic Load Rating Limiting Speed
Mass
Current Code Original Code Approx Fw Ew Bc Dynamic
　 Static Oil
g mm N rpm
25 K25x32x16 19244/25 24.5 25 32 16 20500 27500 15000
K25x33x20 19245/25 32 25 33 20 28000 37500 15000
K25x32x14 29245/25 38.7 25 33 24 33900 46500 15000
K25x34x18 　 32 25 34 18 48000 67000 15000
K25x35x30 39245/25 65.5 25 35 30 46500 61500 14000
K25x30x26 ZW 　 27 25 30 26 21000 35000 14000
26 K26x30x10 　 9 26 30 10 9500 15500 16000
K26x30x13 　 11.4 26 30 13 11100 18700 16000
K26x30x17 　 15 26 30 17 14700 27000 16000
K26x31x13 　 9.9 26 31 13 12400 18400 15000
K26x30x22 　 12.3 26 30 22 15200 28000 16000
27 K27x32x17 　 29 27 32 27 16000 34000 17000
28 K28x32x16.5 　 16 28 32 16.5 15000 32400 14000
K28x32x17 9242/28 18.2 28 32 17 15000 32400 14000
K28x33x13 29241/25 15.2 28 33 13 14800 23600 14000
K28x33x17 49241/28 19.5 28 33 17 19100 33000 14000
K28x33x27 TN 79241/28 19 28 33 27 22800 40500 14000
K28x34x17 39242/28 24.2 28 34 17 21300 35000 14000
K28x35x16 19243/28 26 28 35 16 21000 29000 14000
K28x35x18 　 31 28 35 18 23500 33500 14000
K28x35x20 29243/28 35 28 35 20 24000 34000 14000
K28x35x27 　 47 28 35 27 34500 54500 14000
K28x36x16 　 40 28 36 16 34000 47000 11000
K28x40x18 　 50 28 40 18 33000 36500 12000
K28x40x25 　 71 28 40 25 45000 54500 12000
30 K30x33x10 　 　 30 33 10 　 　 　
K30x34x13 　 14.6 30 34 13 11800 21200 13000
K30x35x13 29241/30 16.3 30 35 13 15100 25000 13000
K30x35x17 49241/30 21.3 30 35 17 19100 33500 13000
K30x35x26 　 　 30 35 26 　 　 　
K30x35x27 19241/30 33.3 30 35 27 30000 58500 13000
K30x37x16 19243/30 26.4 30 37 16 22500 33000 13000
K30x38x25 29244/30 43 30 38 25 16000 39000 13000
K30x39x21 　 　 30 39 21 　 　 　
K30x40x18 　 44 30 40 18 31500 39500 12000
K30x40x27 92401/30T 60 30 40 27 　 　 　
K30x40x30 49243/30 78 30 40 30 48500 68500 13000
K30x35x26 　 32 30 35 26 23500 43500 12000
K30x42x44.1 　 　 30 42 44.1 　 　 　
32 K32x37x13 29241/32 18.3 32 37 13 15000 25000 12000
K32x37x17 49241/32 22.4 32 37 17 19400 35000 12000
K32x37x27 19241/32 36.7 32 37 27 29500 59500 12000
K32x37x28 TN 　 22.3 32 37 28 23100 43000 12000
K32x38x16 　 25 32 38 16 21000 34000 12000
K32x38x20 49242/32 31 32 38 20 26000 44500 12000
K32x38x26 TN 　 25.2 32 38 26 27000 46500 12000
K32x39x16 19243/32 36.7 32 39 16 23500 35000 12000
K32x39x18 　 37.2 32 39 18 26000 40500 12000
K32x40x20 19244/32 48 32 40 20 37000 40500 12000
K32x40x36 　 73 32 40 36 53500 91500 12000
K32x46x32 　 119 32 46 32 65500 82500 11000
K32x40x42 TN 　 771 32 40 42 49500 83500 12000
35 K35x40x13 29241/35 188 35 40 13 15800 27500 11000
K35x40x17 49241/35 25.3 35 40 17 20300 38000 11000
K35x40x25 29244/35 31 35 40 25 29000 59500 11000
K35x40x27 TN 19241/35 23.4 35 40 27 24500 48000 11000
K35x40x27 79241/35 28 35 40 27 27800 62100 11000
K35x40x30 39244/35 43 35 40 30 25000 49500 11000
K35x42x16 19243/35 34 35 42 16 23900 37000 11000
K35x42x18 　 39.2 35 42 18 27000 42500 11000
K35x42x30 49243/35 62.4 35 42 30 38500 67500 11000
K35x43x18 　 38 35 43 18 28000 41500 11000
K35x45x20 　 55.5 35 45 20 36500 49500 10000
K35x45x30 29245/35 80 35 45 30 52500 78500 10000
K35x45x49 　 120 35 45 49 81500 13400 10000
K35x40x30 ZW 　 48 35 40 30 31500 65500 11000
K35x42x20 ZW 29243/35 41 35 42 20 29500 48500 11000
36 K36x41x30 　 52 36 41 30 23000 43000 11000
K36x42x16 　 50 36 42 16 24000 42000 11000
37 K37x42x17 　 25.8 37 42 17 21900 42500 10000
K37x42x27 　 40.7 37 42 27 31500 67500 10000
K37x45x26 　 60.5 37 45 26 43500 73500 10000
38 K38x43x17 49241/38 26.9 38 43 17 20000 38000 10000
K38x43x27 49241/38 43.2 38 43 27 31000 67500 10000
K38x46x20 19244/38 46 38 46 20 35000 56500 10000
K38x46x32 　 72.7 38 46 32 54500 98500 10000
39 K39x44x24 　 38 39 44 24 28000 58500 10000
K39x44x26 ZW 　 29.5 39 44 26 27000 55500 10000
40 K40x44x13 　 20 40 44 13 13500 28000 10000
K40x45x13 29241/40 21.5 40 45 13 17100 32000 10000
K40x45x17 49241/40 27.4 40 45 17 20900 41000 10000
K40x45x21 　 36.5 40 45 21 24400 49500 10000
K40x45x27 19241/40 46 40 45 27 32500 72500 10000
K40x46x17 39242/40 30 40 46 17 24500 44500 9000
K40x47x18 　 45.2 40 47 18 29000 49500 9000
K40x47x20 29243/40 42 40 47 20 32000 56500 9000
K40x48x20 19244/40 57.7 40 48 20 35500 58500 9000
K40x45x30 ZW 　 48 40 45 30 26000 53500 9000
42 K42x47x13 29241/42 22.5 42 47 13 17300 33000 9000
K42x4717 49241/42 31.1 42 47 17 21100 42500 9000
K42x47x25 TN 　 25.4 42 47 25 27000 57500 9000
K42x47x27 79241/42 46.6 42 47 27 33000 74500 9000
K42x48x35 79242/42 60 42 48 35 35000 76000 9000
K42x50x18 　 53 42 50 18 31000 49500 9000
K42x50x20 19244/42 54 42 50 20 34500 56500 9000
K42x47x30 ZW 　 54 42 47 30 31000 75500 9000
43 K43x48x17 　 29.3 43 48 17 21000 42500 9000
K43x48x27 　 45.7 43 48 27 33000 74500 9000
K43x50x18 9249/43 48.5 43 50 18 30500 53500 8000
45 K45x49x19 　 27 45 49 19 17500 40000 8000
K45x50x17 49241/45 25.5 45 50 17 22000 45000 8000
K45x50x27 19241/45 50 45 50 27 34000 79500 8000
K45x50x32 TN 　 45 45 50 32 38000 90500 8000
K45x52x18 　 51 45 52 18 31000 56500 8000
K45x52x21 TN 　 32.9 45 52 21 39500 57500 8000
K45x53x20 19244/45 62.2 45 53 20 38500 66500 8000
K45x53x21 　 65 45 53 21 38000 66500 8000
K45x53x22 　 68.4 45 53 22 42000 66500 8000
K45x53x28 　 78 45 53 28 51500 97500 8000
K45x59x18 TN 　 60.5 45 59 18 43500 53500 7000
K45x59x32 　 145.5 45 59 32 72500 101500 7000
K45x59x36 　 195 45 59 36 75500 108500 7000
K45x51x36 ZW 　 85 45 51 36 44500 98500 7000
47 K47x52x17 　 32 47 52 17 22800 48500 8000
K47x52x27 　 50.7 47 52 27 34500 82500 8000
K47x53x25 　 53 47 53 25 38000 81500 8000
K47x55x28 　 62.4 47 55 28 52500 99500 7500
48 K48x54x19 39242/48 44 48 54 19 30000 60500 7500
K48x54x25 59242/48 55 48 54 25 31000 91000 7500
50 K50x55x13.5 　 31 50 55 13.5 17500 36000 7500
K50x55x17 49241/50 35 50 55 17 21400 46500 7500
K50x55x20 59241/50 39.4 50 55 20 26000 59500 7500
K50x55x30 9243/50 59.4 50 55 30 38500 96500 7500
K50x57x18 　 53.4 50 57 18 33000 62500 7000
K50x58x20 19244/50 64.9 50 58 20 35000 61500 7000
K50x58x25 29244/50 81 50 58 25 43500 80500 7000
52 K52x57x12 　 24 52 57 12 17500 36000 7000
55 K55x60x20 　 43.4 55 60 20 28000 65500 6500
K55x60x27 　 60.5 55 60 27 37500 96500 6500
K55x60x30 　 68.6 55 60 30 40500 10300 6500
K55x61x20 　 56 55 61 20 41000 11000 6500
K55x62x18 　 58.4 55 62 18 35000 69500 6500
K55x63x15 　 53 55 63 15 245000 40500 6500
K55x63x20 19243/55 73.3 55 63 20 39500 73500 6500
K55x63x25 29243/55 88 55 63 25 49500 99500 6500
K55x63x32 　 117 55 63 32 61500 129500 6500
K55x60x40 ZW 　 96.5 55 60 40 48000 132000 6500
56 K56x61x20 　 45 56 61 20 27000 64500 6500
58 K58x63x17 　 42 58 63 17 21500 63500 6000
K58x64x19 　 53 58 64 19 24500 77500 6000
K58x65x18 　 52 58 65 18 34500 69500 6000
K58x65x38 ZW 　 106 58 65 38 48500 106500 6000
60 K60x65x20 49241/60 50.5 60 65 20 29000 71500 6000
K60x65x30 69241/60 71.2 60 65 30 42000 115500 6000
K60x68x20 19243/60 79 60 68 20 43000 84500 5500
K60x68x23 　 94 60 68 23 49000 100500 5500
K60x68x25 29243/60 97 60 68 25 52500 110500 5500
K60x68x27 　 98 60 68 27 59000 120500 6000
K60x75x42 　 240 60 75 42 11300 19200 5500
K60x66x33 ZW 　 104 60 66 33 45500 111500 6000
K60x66x40 ZW 　 116 60 66 40 57500 150500 5500
K60x68x30 ZW 　 136 60 68 30 44000 87500 5500
K60x68x34 ZW 　 140 60 68 34 47500 95500 5500
62 K62x70x40 ZW 　 147.5 62 70 40 65500 145500 5500
63 K63x70x21 　 75 63 70 21 45000 100500 5500
64 K47x70x16 　 53 64 70 16 27500 59500 5500
65 K65x70x20 49241/65 49 65 70 20 30000 76500 5500
K65x70x30 　 83 65 70 30 43500 93500 5500
K65x73x23 　 100 65 73 23 45500 93500 5000
K65x73x30 39243/65 126 65 73 30 56500 122500 5000
68 K68x74x20 49241/68 65 68 74 20 35000 83500 5000
K68x74x30 69241/68 97 68 74 30 46000 117500 5000
K68x74x35 ZW 79241/68 116 68 74 35 48000 124500 5000
K68x75x20 　 120 68 75 32 53500 127500 4500
70 K70x76x20 49241/70 70 70 76 20 35500 85500 4500
K70x76x30 69241/70 100 70 76 30 51500 138500 4500
K70x78x25 29243/70 115 70 78 25 51500 111500 4500
K70x78x30 39243/70 136 70 78 30 59500 134500 4500
K70x80x30 29244/70 150 70 80 30 72500 147500 4500
K70x78x46 ZW 　 230 70 78 46 77500 18800 4500
72 K72x80x20 19243/72 94 72 80 20 41000 84500 4500
73 K73x79x20 　 69 73 79 20 36500 99500 4500
75 K75x81x20 49241/75 72 75 81 20 37000 93500 4500
K75x81x30 69241/75 106 75 81 30 51500 142000 4500
K75x83x23 　 113 75 83 23 49500 108000 4000
K75x83x30 39243/75 147 75 83 30 91500 142000 4000
K75x83x35 ZW 49243/75 165 75 83 35 62500 146500 4000
K75x83x40 ZW 59243/75 190 75 83 40 72500 176500 4000
80 K80x86x20 49241/80 76 80 86 20 38000 97500 4000
K80x86x30 69241/80 114 80 86 30 55500 158500 4000
K80x88x30 39243/80 141 80 88 30 71500 178500 4000
K80x88x40 ZW 59243/80 204 80 88 40 75500 191500 4000
K80x88x46 ZW 69243/80 235 80 88 46 87500 23000 4000
85 K85x92x20 29241/85 96 85 92 20 44000 107500 3500
90 K90x97x20 29241/90 103 90 97 20 44500 112500 3000
K90x98x27 　 150 90 98 27 60500 149500 3000
K90x98x30 39242/90 172 90 98 30 67500 171500 3000
95 K95x102x20 29241/95 110 95 102 20 45500 122500 2900
K95x103x30 ZW 39242/95 177 95 103 30 68500 179500 2900
K95x103x40 ZW 59242/95 250 95 103 40 82500 227500 2900
100 K100x107x21 　 120 100 107 21 47500 126500 2700
K100x108x27 　 176 100 108 27 56500 142500 2700
K100x108x30 39242/100 190 100 108 30 70500 187500 2700
105 K105x112x21 　 123 105 112 21 47000 126500 2500
K105x113x30 39242/105 198 105 113 30 71500 196500 2500







Shaft Diameter (mm) Bearing Designation 　 Boundary Dimensions Basic Load Rating Limiting Speed
Mass
Current Code Original Code Approx Fw Ew Bc Dynamic 　 　
　 Static Oil
g mm N rpm
110 K110x117x24 　 146 110 117 24 55500 157500 2300
K110x118x30 39244/110 217 110 118 30 77500 218500 2300
115 K115x123x27 　 200 115 123 27 63 170 4100
K115x125x35 　 　 115 125 35 63 170 4100
K115x125x40 　 　 115 125 40 65 175 4100
120 K120x127x24 　 165 120 127 24 59 174 4000
125 K125x133x35 　 275 125 133 35 86 260 3800
130 K30x127x24 　 170 130 137 24 61 186 3700
145 K145x153x26 　 262 145 153 26 74 225 3300
155 K155x163x26 　 265 155 163 26 75 236 3100
160 K160x170x46 　 550 160 170 46 152 510 3000
165 K165x173x26 　 320 165 173 26 81 265 3000
175 K175x183x32 　 400 175 183 32 99 350 2700
185 K185x195x37 　 607 185 195 37 128 425 2600
195 K195x205x37 　 620 195 205 37 133 450 2500
210 K210x220x42 　 740 210 220 42 154 560 2300
220 K220x230x42 　 790 220 230 42 158 590 2200
240 K240x250x42 　 850 240 250 42 164 630 2000
265 K265x280x50 　 1810 265 280 50 255 860 1800

FAQ:



1. What is your the payment condition?



For regular products,No advance payment is needed, you can make 100% payment before shipment accordingly.



For customized products,our payment term normally is 30% of advance, the balance 70% against copy of BOL.



For our long term customers,you can pay 1 month after receiving the good.





2. What is your sales turnover?



Our whole year sales turnover in 2023 to 2024 is 11 million dollars





3. Do you have any certifications?



Yes, We are an IATF16949 certified needle bearings manufacturer since 2011.





4.What about the lead time?



Our production period is 30-45 days





5.What is your production capacity?



We are able to produce over 100 million pieces of bearings per year with different sizes and types



Tags:

needle roller and cage assemblies,

needle roller cage assembly,

Inch Radial Needle Roller And Cage Assemblies

Recommended Products

CONTACT US

+86-15851979614
NO.9 Changbei Road,West Lake Street,Wujin District, Changzhou City,213145,China
8615851979614
jxc111good
info@czhbearings.com
Send your inquiry directly to us
